How to sync two nestable sliders in Bricks

In this tutorial, we’ll learn how to sync two nestable sliders in Bricks: one will be the main slider and the other one will be a thumbnail slider.

Introduction
The DOM tree
The JSON settings for the Thumbnail slider
The JavaScript Code

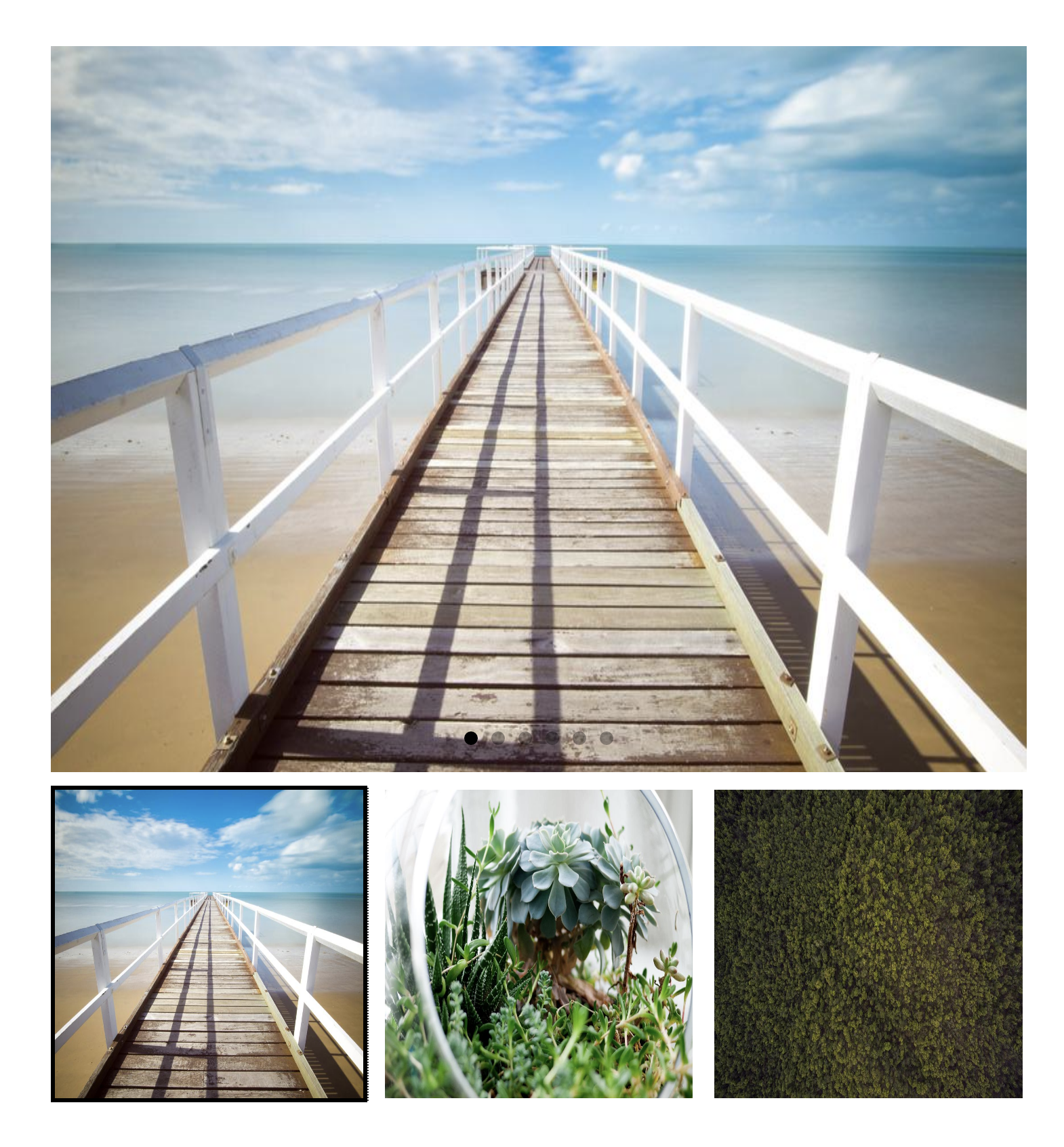

The result
Resources

Introduction

This tutorial is a follow-up to the great video of Udoro ‘Cracka’ Essien shared recently in the group. He explained how to sync two nested sliders in Bricks: one main slider and one used as a thumbnail.

This tutorial enhances the previous code shared by Cracka and allows you to:

set and forget the Javascript Code. Once enqueued, you don’t have to touch it again as it’s based on classes rather than IDs
insert multiple sync sliders on the same page
avoid possible conflict with other plugins/snippets
reduce the amount of JS calculation by debouncing the function on resize

Let’s dive into it!

The DOM tree

In order to work, we need

a container (or a section / block / div) with the class .sync-sliders-wrapper
the two sliders to be children of the container
the main slider needs the class .sync-sliders-main
the thumbnail slider needs the class .sync-sliders-thumb

The JSON settings for the Thumbnail slider

As explained by Cracka in his video, you need to insert a custom JSON object as the thumbnail slider setting options. I’ll just paste the code for reference:

{
   "type":"slide",
   "direction":"ltr",
   "keyboard":"global",
   "height":"auto",
   "gap":10,
   "start":0,
   "perPage":"3",
   "perMove":1,
   "speed":400,
   "interval":3000,
   "autoHeight":true,
   "autoplay":false,
   "pauseOnHover":false,
   "pauseOnFocus":false,
   "arrows":false,
   "pagination":false,
   "focus": "center",
   "isNavigation": true,
   "updateOnMove": true,
   "breakpoints":{
      "580":{
         "perPage":"2"
      }
   }
}

The most important string here is "isNavigation": true that will set the slider as a navigation slider.

Note: There should NOT be a comma before the cursor position as it appears in the screenshot

The JavaScript Code

Enqueue the following code in your child theme or use a code snippet plugin:

document.addEventListener('DOMContentLoaded', () => {

   // Query all the wrappers
   const wrappers = document.querySelectorAll('.sync-sliders-wrapper');

   // Stop the function if there is no sync slider
   if (wrappers.length < 1) return;

   // Debounce function
   const debounce = (fn, threshold) => {
      var timeout;
      threshold = threshold || 200;
      return function debounced() {
         clearTimeout(timeout);
         var args = arguments;
         var _this = this;

         function delayed() {
            fn.apply(_this, args);
         }
         timeout = setTimeout(delayed, threshold);
      };
   };

   // Init function
   const init = (mainSliderId, thumbSliderId) => {
      const main = bricksData.splideInstances[mainSliderId],
         thumbnail = bricksData.splideInstances[thumbSliderId];

      // Mount the sync slider
      main.sync(thumbnail);

   };

   // Loop into each wrapper
   wrappers.forEach(wrapper => {

      // Set the ID of the main slider
      const mainSlider = wrapper.querySelector('.sync-sliders-main');

      // Check if the main slider class is correctly set
      if (!mainSlider) return console.log('No .sync-sliders-main class found');
      const mainSliderId = mainSlider.dataset.scriptId;

      // Set the ID of the thumb slider
      const thumbSlider = wrapper.querySelector('.sync-sliders-thumb');

      // Check if the thumb slider class is correctly set
      if (!thumbSlider) return console.log('No .sync-sliders-thumb class found');
      const thumbSliderId = thumbSlider.dataset.scriptId;

      // Run the function on load
      setTimeout(() => {
         init(mainSliderId, thumbSliderId);
      }, 0);

      // Rerun the function on resize because bricks reinit the sliders on each resize event
      window.addEventListener("resize", debounce(() => {
         init(mainSliderId, thumbSliderId);
      }, 300));
   });
});
